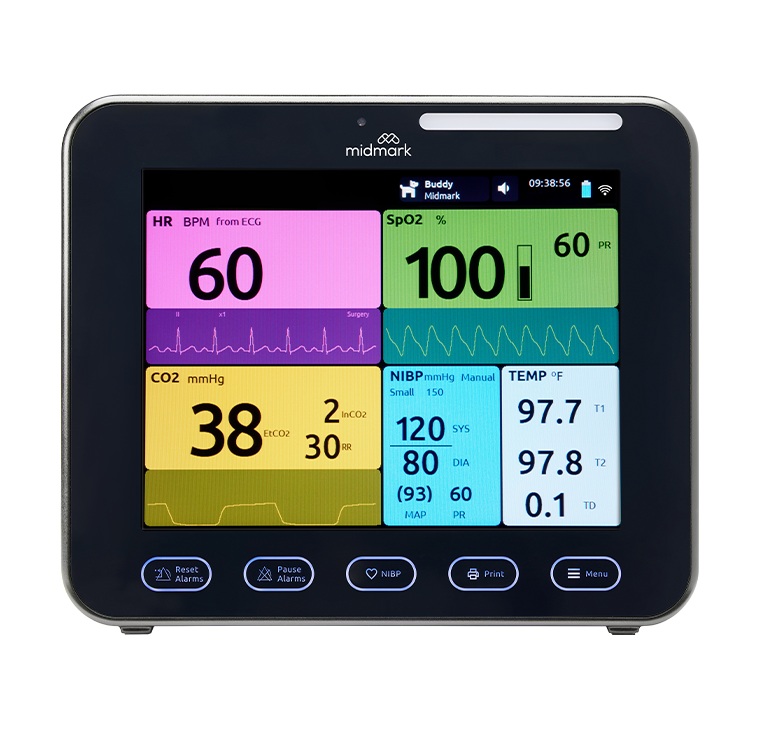

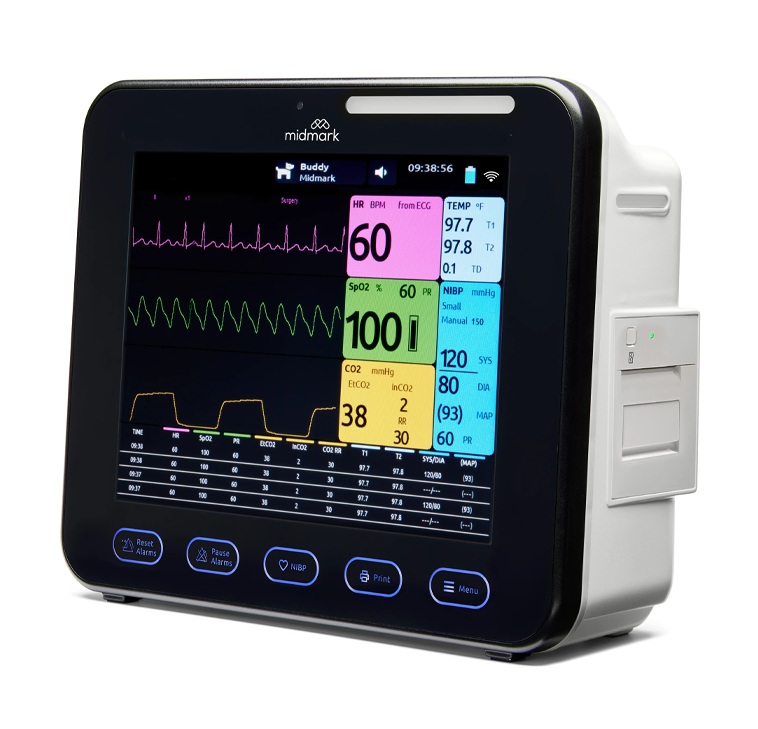

Multiparameter Monitor 8" with printer

Description:

Safer, More Efficient Anaesthetic Procedures.

Leveraging decades of clinical experience responding to common anaesthetic issues, Midmark Multiparameter Monitors are designed to help avoid anaesthetic complications.

Help your team gain confidence in their anaesthesia delivery skills.

 BEST PRACTICE REMINDERS

Improve team compliance and help promote safer, more efficient procedures with the built-in pre-procedure checklist, CO2 soda lime absorbent reminder and NIBP best pactice reminder.

ENHANCED BP FEATURES

Cardell® BP Technology includes veterinary-specific algorithms that are validated as accurate for anesthetised cats and dogs in peer-reviewed studies.

An added screening mode provides more precise readings for awake patients.

ENHANCED ECG + CO2  CATALOGUES

Changes in waveforms can be the earliest signals of complications. Use the integrated waveform catalogies to quickly match abnormal waveforms to patterns of common anaesthetic occurunces.

ALARM CENTRE & TROUBLESHOOTING

Quickly manage technical and physiological alarms with the built-in alarm centre.

Reference the built in troubleshooting guide for technical alarms.

CUSTOMISED USER DISPLAY

Quickly manage technical and physiological alarms with the built-in alarm centre.

Reference the built in troubleshooting guide for technical alarms.

SPECIFICATIONS


Dimensions/Weight

9.5 lb (8019-021)

5.09" x 13.00" x 10.96"

Electrical

Voltage: AC 100 - 240 V

Parameters

NIBP: Cardell® BP Technology

Pulse Oximetry (SpO2): Nellcor®

CO2 Monitoring:

Respironics® CAPNOSTAT® 5 Mainstream

Respironics® LoFlo™ Sidestream

Masimo® Mainstream

Masimo® Sidestream

ECG: 3-Lead Standard, 5-Lead Optional

HR/PR: ECG HR/SpO2 and NIBP PR

Temperature: 2-Channel

Respiration Method:
Indirect: Impedance
Direct: Capnography (optional)

Invasive Blood Pressure: 2-Channel (optional)

Anesthetic Gas: Masimo® Multigas Mainstream or Sidestream (optional) CO2, N2O, ISO, SEV, ENF, DES, HAL

Display: 12.1" LCD Resistive Touch Screen

Printer: Integrated (optional)

Waveform Display:
8 Channel with IBP and Multigas Options
3-4 Channel Standard Display

ECG Vector Waveform Display:
7-Channel with 5-Lead Option
1-Channel with 3-Lead Option

ECG Gain: Auto, x0.25, x0.5, x1, x2, x4

HR/PR Range:
ECG HR = 15-350 bpm
SpO2 PR = 20-300 bpm

NIBP Modes: Manual, Auto, Continuous, Screen

Graphical Trends: 168 hours

Tabular Trends: 168 hours

Parameter Alarms: User-Defined High/Low with 4 Defaults (cat, dog, horse, other)

Download to PC: USB Drive

Battery Life: Up to 4 hours

Capnostat, Cardell, LoFlo, Masimo, Nellcor, and Respironics are all trademarks or registered trademarks of their respective companies.

INCLUDED ACCESSORIES

(Warranties Vary)

ECG

016-10178-00 3-Lead ECG Cable/Lead/Clip Set

PL-200 Redux Gel for ECG Use

IBP (-003 Model Only)

016-10180-00 IBP Trunk Cable

016-1587-00 Disposable IBP Transducer and Administrative Set

NIBP

NIBP-TUBE NIBP Inflation Tube

061-1016-00 Blood Pressure Cuff Selector

SV1 Small Animal BP Cuff #1 (QTY: 1)

SV2 Small Animal BP Cuff #2 (QTY: 2)

SV3 Small Animal BP Cuff #3 (QTY: 3)

SV4 Small Animal BP Cuff #4 (QTY: 3)

SV5 Small Animal BP Cuff #5 (QTY: 2)

SV8 Large Animal BP Cuff #8 (QTY: 1)

SV10 Large Animal BP Cuff #10 (QTY: 1)

SpO2

01-02-0183 Nellcor DOC-10 SpO2 Cable

V-SAT Nellcor VETSAT SpO2 Sensor w/Lingual Clips

Temperature

016-10164-00 Temperature Probe

Midmark Visualiser

015-3322-02
