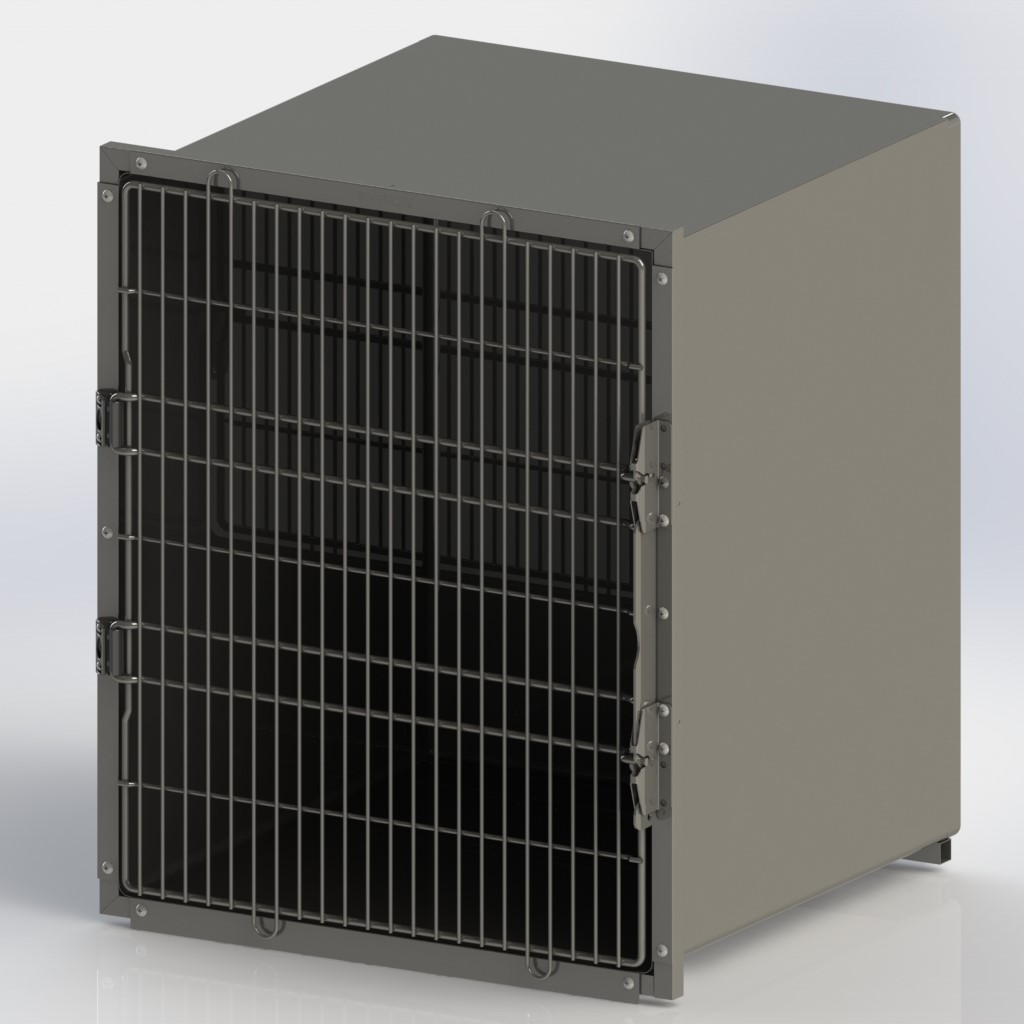

Stainless Steel Kennels

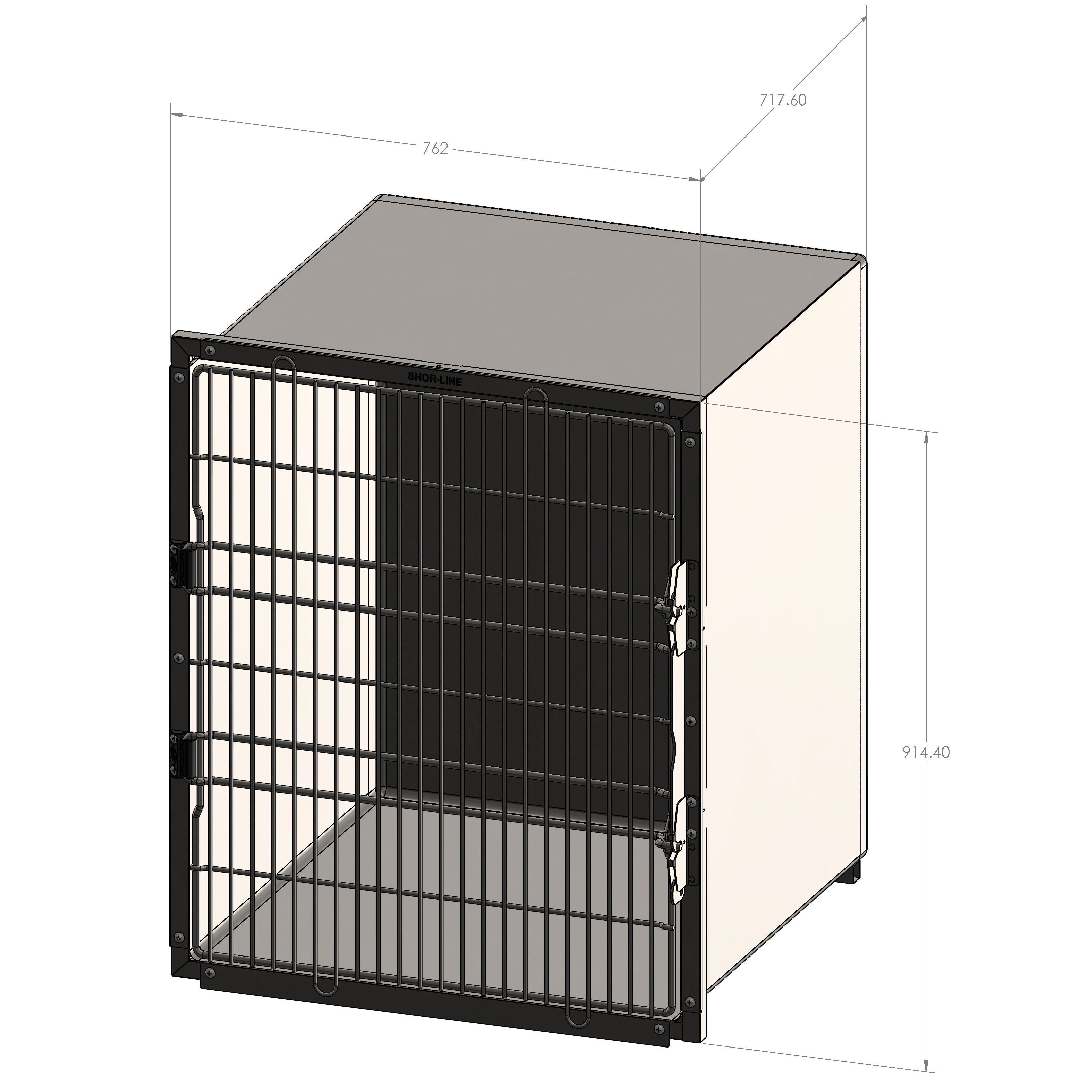

Kennel - Width 762mm x Height 914.4mm x Depth 717.6mm

Part Code:

902.3036.70

Description:



Kennel Dimensions

External Width (mm)

762

External Height (mm)

914.4

External Depth (mm)

717.6





1. Internal Walls

• Each Kennel is made of 22 gauge type 304 Stainless Steel with satin finish
• 2 piece construction to minimise welded seams
• Raised fluid retaining lip to prevent spillage.
• Radius corners, making the Shor-Line Kennel easy to clean

2. Frame (not visible from the front)

• Each frame is made of 25.4mm square stainless steel tube
• Stainless Steel floor brace

3. Door

• Each door is constructed of type 304 stainless steel with electro polished satin finish
• Each door is easily removed without the use of tools for easy cleaning
• Each door is reversible
• Latch and frame bars are 9.5mm diameter, additional horizontal bars are 6.4mm diameter, and vertical rods are 4.76mm diameter spaced on 30mm centres, creating the strongest Kennel door on the market
• A unique “removable central divider bar” is included on every double door kennel, which is needed in the aide of the cleaning the Kennel
• Loops on the bottom of the each door to prevent bedding from falling out
• Each door is designed to fit securely inside the Kennel with minimal gaps, no greater than 6.35mm between Kennel internal wall and door

4. Latch

• Patented Latch
• Made entirely from Stainless Steel with self-locking and dual latch points, for additional security
• The latch secures the door automatically when it is pushed from the outside of the kennel, which makes it difficult for a patient to escape
• Self-lubricating hinges allow for silent, secure operation, less stress for patient
• Latch bar is made of 11 gauge stainless steel, to provide a lifetime of use
• Each latch bar contains a hole at the bottom to allow for additional locking security, such as a padlock

5. Trim hardware

• All trim hardware and components are stainless steel with rounded corners and no sharp edges

6. Sound Deadening

• All kennels include sound deadening patches to reduce unwanted noise from vibration
